Fully Automatic Toilet Roll Tissue Maxi Roll Log Band Saw Cutting Machine

Name: Fully Automatic Toilet Roll Tissue Maxi Roll Log Band Saw Cutting Machine
Brand: JORI
Price: 29 USD

China Fully Automatic Toilet Roll Tissue Maxi Roll Log Band Saw Cutting Machine wholesale

Applicable Industries : Machinery Repair Shops, Construction works , New Condition Full Automatic Maxi Paper Roll Band

Showroom Location : None

Condition : New

Type : Paper Cutting Machine

Computerized : Yes

Place of Origin : Fujian, China

Brand Name : JORI

Voltage : 380V 50Hz

Dimension(L*W*H) : Configuration

Weight : 2700 kg

Warranty : 1 Year

Production Capacity : 38 cuts/min

Key Selling Points : Easy to Operate

Max. workable width : 2600mm

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Motor, Other, Bearing, Gear, Engine, PLC

PLC Brand : DELTA

After-sales Service Provided : Engineers available to service machinery overseas

Cutting Speed : 20~30 cut per minute

Cutting Channel : 1 lane

Cutting Tool : 5180*100*1 bandsaw blade

Raw Material Length : ≤3000mm

Cutting Deviation : ±2mm

Core thickness : 1.1mm-6mm

Outer Dia. of paper roll : 150~300mm

Power Supply : 15 KW

Packaging Details : Wooden Cases, Seaworthy Package.
New Condition Full Automatic Maxi Paper Roll Band Saw Cutting Machine on Sale

Port : Xiamen port, China

Supply Ability : 40 Unit/Units per Month New Condition Full Automatic Maxi Paper Roll Band Saw Cutting Ma

Price : $29,000.00/Units 1-9 Units

Contact Now

Product Description

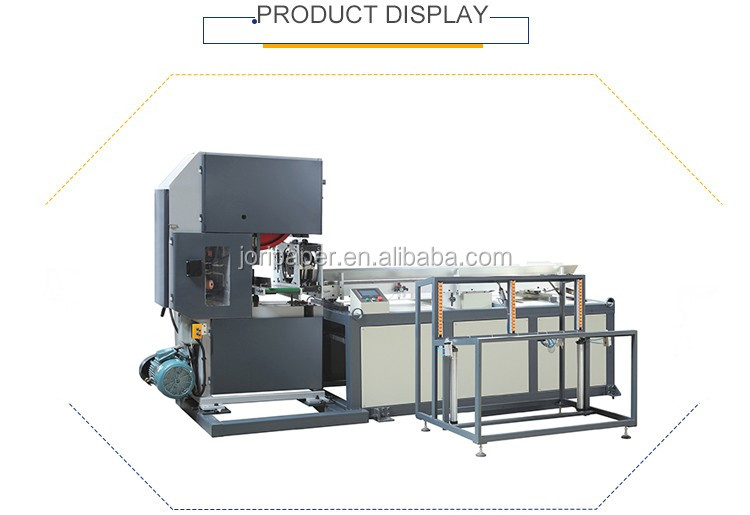

Maxi Roll Log Band Saw Cutting Machine

This machine adopt PLC programming control, large screen color human-machine interface operation, precise servo motor control feeding length, mechatronic control and some other international advanced technology. The machine can automatically detect each key action, with a complete fault message prompt system, so that the whole production line can achieve the best working condition.

Features:

1.This machine is easy operated, low noise, stable moving and high-production.
2.Adopting with advanced PLC programming technology, speed controlled by inverter and touch-screen operation panel
3.Drived by servo motor
4.Log pusher controller by a servomotor, which provide the correct cutting length
5.Single stainless steel feed channels,separate servo motor control,with clip hold the rolls
6.Automatic blade sharpening system, adjust by touch screen
7.Equipped with advanced photoelectric checking system
8.Automatic stop in case of misplacement or over ø of log
9.Band saw knife wear and tear less than log saw cutter
10.Controlling screen sets all the slitting speed and length, so the smoothness and the continuity of pushing, cutting.
11.Finished production with perfect cut

Detail Products:

Name	Specification
Speed	10-20 cut/min
Cutting length	90- 400 mm
Cutting diameter	150-280 mm
Core thickness	1-5 mm
Waste	25-30 mm
Weight	3000 KG

Finished Products:

Finished Product Size:
